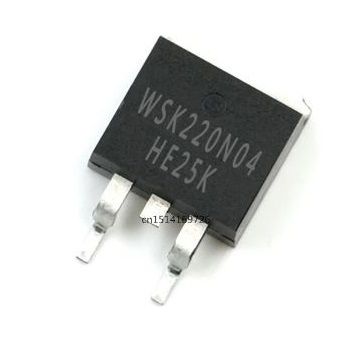

WSK220N04
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 218 W
Maximum Drain-Source Voltage |Vds|: 40 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 220 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 156 nC
Rise Time (tr): 19 nS
Drain-Source Capacitance (Cd): 1463 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0032 Ohm
Produktkod: WSKUBL2I56
Skick: Ny
