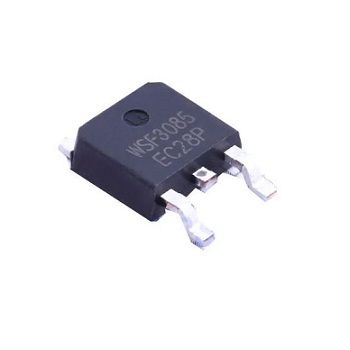

Type Designator: WSF3085
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 53 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 85 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 20 nC
Rise Time (tr): 15 nS
Drain-Source Capacitance (Cd): 570 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0055 Ohm
Product Code: WSF3085
